Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
012-4961-070
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

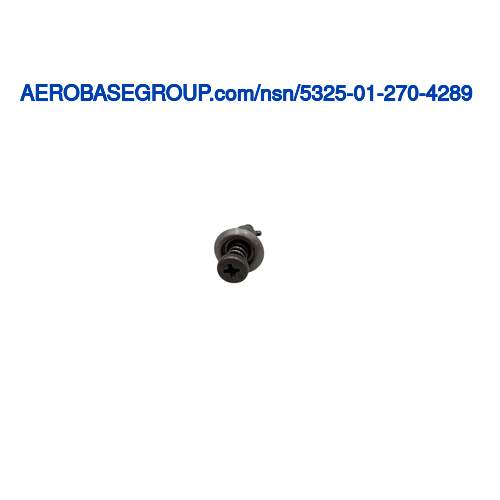

Turnlock Fastener Stud Assembly
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
Between 0.298 inches and 0.308 inches
MRC:
Indicates the type of device used to fasten the item.ADQB
Securing Device Type:
Spring
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the turnlock stud head.AGRD
Turnlock Stud Head Style:
Fillister
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the stud assembly.AGRE
Stud Assembly Style:
Stud assembly
Distance From Engaging Member To Largest Bearing Surface Of Head:
0.611 inches
Eyelet Outside Diameter:
Between 0.244 inches and 0.250 inches
Eyelet Length:
0.332 inches
MRC:
The thickness of the material to be accommodated.AGSM
Material Accommodated Thickness:
Between 0.090 inches and 0.119 inches
MRC:
Indicates the type of drive for turning,rotating,or positioning the mechanism.AKCV
Drive Type:
Cross recess
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 302 ejector spring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 302 stud or stainless steel stud
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 302 pin
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 305 eyelet
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm a580 assn standard single material response ejector spring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm a580 assn standard single material response pin
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-s-766 federal specification single material response eyelet
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Stm a580 federal specification single material response stud or comp 384, cagec 71321 mfr ref 2nd material response stud
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response
