Teilenummer 02P238368-2

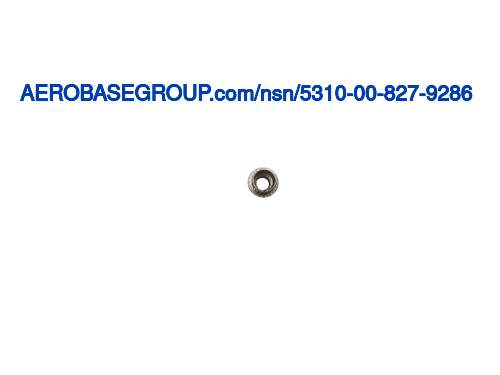

Clinch Self-locking Nut
Lagerverfügbarkeit  Produkt-Bedingungscodes

Teilenummer 02p238368-2 ist in den folgenden Mengen und Zuständen vorrätig.

  • NE: 16912
  • NS: 552
  • AR: 1

Hinweis: Die Verfügbarkeit dieses Artikels wurde zuletzt aktualisiert 08/23/2024 und kann sich seitdem verändert haben. Fordern Sie ein Angebot an, um aktuelle Preise und Verfügbarkeiten zu erhalten.

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 0.52 and 0.702 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
02p238368-2
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
100 EA
NIIN:
008279286
NSN
Nationale Bestandsnummer:
5310-00-827-9286 5310008279286
TXT
Beschreibung:
Clinch Self-locking Nut
INC
INC
Artikelname-Code:
15892
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque with nonmetallic insert
MRC:
The length of a straight line which passes through the center of that portion used to guide the item and terminates at the circumference.AAVL
Pilot Diameter:
Between 0.158 inches and 0.162 inches
MRC:
The length of the pilot,which is the unthreaded portion beyond the thread used to guide the item.AAVM
Pilot Length:
Between 0.057 inches and 0.063 inches
MRC:
The length of a straight line which passes through the center of a counterbored portion of a hole,and terminates at the circumference.AAWY
Counterbore Diameter:
0.128 inches nut and 0.133 inches nut
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Clinch
MRC:
None.ACTD
Nut Diameter:
Between 0.198 inches and 0.208 inches
MRC:
None.ADEA
Nut Height:
Between 0.137 inches and 0.163 inches
MRC:
The measurement of the enlarged portion adjacent to the threaded portion of a nut,in distinction from height.ADFK
Nut Counterbore Depth:
0.060 inches nut
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
350.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unc
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
40
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.112 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyhexamethylene amide locking insert or plastic polycaprolactam locking insert
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 303 nut or steel comp 303se nut or steel comp 303 plus x nut
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5640 assn standard 2nd material response nut
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-m-20693 military specification 1st material response locking insert
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate except insert
