Teilenummer 10283-01

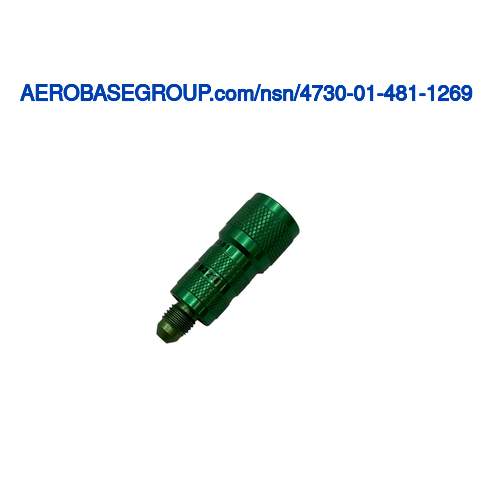

Quick Disconnect Coupling Half

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 385.36 and 520.236 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
10283-01
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
014811269

Informationen zum Teil
Female; burst pressure 163 psig; operating temp range neg 40 degrees f to 160 degrees f; separation force 18 plus minus 2 lbs; 1st end diameter 0.86 in; 2nd end per ms33656e4 or as4395e0y

NSN
Nationale Bestandsnummer:
4730-01-481-1269 4730014811269
TXT
Beschreibung:
Quick Disconnect Coupling Half
INC
INC
Artikelname-Code:
18681
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
2.380 inches
MRC:
The hue or tint of the exterior of the item.ADJS
Exterior Color:
Green
MRC:
The specific mating coupling half with which the item must connect.ADLT
Mating End Identification:
Air-lock, coupling half, quick disconnect, part no. C20745-1
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
F16aircombfit; w/s aircraft, f-16
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Self-sealing
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-a-225/6 federal specification single material response or ams 412 assn standard single material response or ams 4152 assn standard single material response body
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Anodize body
MRC:
Test conditions and ratings,or environmental and performance requirements that are different,more critical,or more specific than those specified in a governing test data document.SPCL
Special Test Features:
Subject to combined low temperature qualification test
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Mil-a-8625 military specification single treatment response body
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Male coupling half
