Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

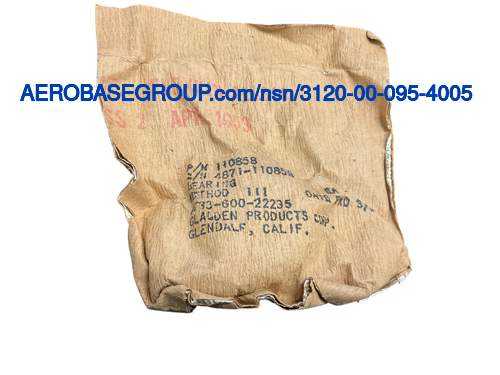

Sleeve Bearing
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 0.7400 inches and 0.7600 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.8105 inches and 0.8125 inches
MRC:
The length of a straight line which passes through the center of the flange,and terminates at the outside circumference.AEPR
Flange Outside Diameter:
Between 1.3695 inches and 1.3735 inches
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
Between 0.2480 inches and 0.2780 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the means whereby the lubricant is set into the item.AGKH
Lubricant Accommodation Style:
Grooved circular
End To Flange Distance:
Between 0.1460 inches and 0.1660 inches
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Round center flange right body corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square center flange left body corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square center flange outside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square center flange outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square inside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square inside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside left corner
MRC:
Indicates the location and number of grooves on the surface of the item.CTMQ
Surface Groove Location And Quantity:
1 internal
Left End Body Diameter:
Between 1.1225 inches and 1.1245 inches
Right End Body Diameter:
Between 1.1225 inches and 1.1245 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
21c solid, external flange
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Solid, external flange
