Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
204-010-413-015
Informationen zum Teil
Inside and outside diameter parallel and concentric within 0.0030 in. Total indicator reading, heat treated to tensile strength of 125000 to 145000 psi per mil-h-6875
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

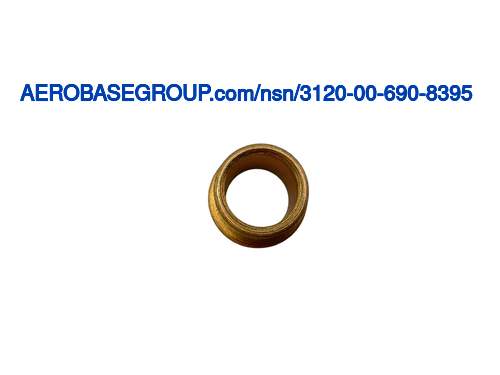

Sleeve Bushing
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 0.5600 inches and 0.5750 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 0.6260 inches and 0.6265 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.4740 inches and 0.4940 inches
MRC:
The length of a straight line which passes through the center of the flange,and terminates at the outside circumference.AEPR
Flange Outside Diameter:
Between 0.7400 inches and 0.7600 inches
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
Between 0.1500 inches and 0.1550 inches
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered inside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered inside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square left flange outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Undercut left flange body corner
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
63.0 microinches intermediate layer
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4130
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-s-6758 military specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
22c solid, external flange one end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Solid, external flange one end
