Teilenummer:
204-011-310-001
Informationen zum Teil
2 lubrication holes equally spaced on outer ring 0.125 in. Dia
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

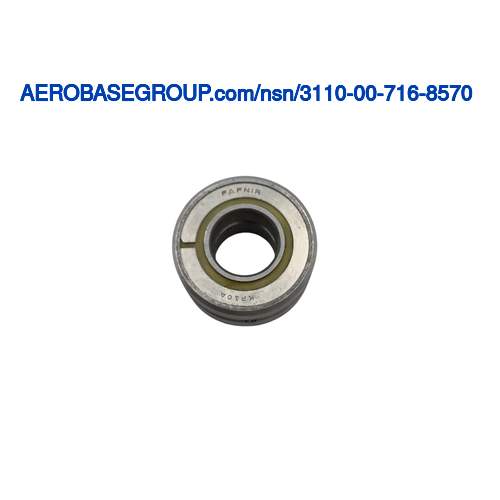

Duplex Ball Bearing
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 0.7300 inches and 0.7500 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.6245 inches and 0.6250 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
Between 1.3745 inches and 1.3750 inches
MRC:
The element,compound,or mixture with which the item is lubricated.ADZG
Lubrication Material:
Grease
MRC:
An additional finishing process by which the surface of an item is altered in respect to polishing,grinding,and the like.AGYE
Surface Finish:
Ground
MRC:
The number of seals included on the item.AGYJ
Seal Quantity:
2
MRC:
Indicates the type of seal provided with the bearing.AGYW
Bearing Seal Type:
Contact
MRC:
The direction of load with respect to the shaft axis.AGZC
Load Direction:
Radial
MRC:
The clearance between the bearing rings and the rolling elements.AKVV
Internal Clearance:
0.0050 inches axial and 0.0010 inches radial
MRC:
The amount of internal loading in a bearing which is independent of any external radial and/or axial load.CTHQ
Bearing Preload Rating:
100.0 pounds
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the lubrication material.LMDC
Lubrication Material Specification:
Mil-g-25537 military specification single material response
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber seal
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel ball
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel inner ring
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel outer ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
204-011-310-1, 97499 mfr ref single material response seal
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Fed-std-66, aisi/sae e52100 federal standard single material response ball
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Fed-std-66, aisi/sae e52100 federal standard single material response inner ring
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Fed-std-66, aisi/sae e52100 federal standard single material response outer ring
