Nationale Bestandsnummer:
TXT
Beschreibung:

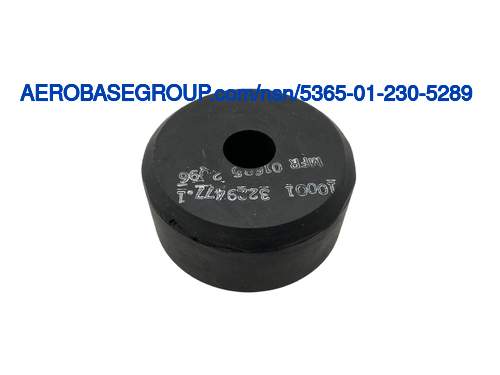

Nonmetallic Bushing
MRC:
A numeric value that reflects the hardness of a nonmetallic item when used in conjunction with a hardness rating scale.AASF
Nonmetallic Hardness Rating:
75.0 shore durometer a and 85.0 shore durometer a
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.375 inches
MRC:
The length of a straight line which passes through the center of a flange,and terminates at the circumference.ABKK
Flange Diameter:
2.310 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the circumference.ABPM
Body Diameter:
Between 1.000 inches and 1.010 inches
MRC:
A measurement of the longest dimension of the body,in distinction from width.ADAQ
Body Length:
0.375 inches
MRC:
The length of a straight line which passes through the center of the center hole,and terminates at the circumference.ADYT
Center Hole Diameter:
Between 0.557 inches and 0.567 inches
MRC:
A measurement from the bottom to the top of a flange,in distinction from depth.AHGD
Flange Height:
1.000 inches
MRC:
Indicates the design type of the item.APGF
Design Type:
Single centrally located hole
Corner Radius Between Flange And Body:
Between 0.010 inches and 0.040 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Rubber chloroprene class cr
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-std-417, type s, class sc, grade sc815abce3f1 military standard single material response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Round flanged
