Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

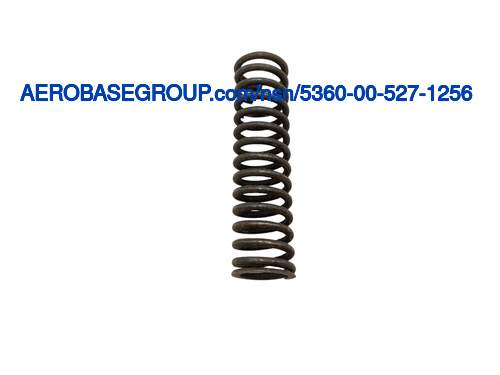

Compression Helical Spring
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 0.688 inches and 0.719 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the end.ABQK
End Style:
E4 spring end, squared and ground both ends
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the end.ABQK
End Style:
Spring end, squared and ground both ends
Spring Free Length:
Between 3.000 inches and 4.250 inches
MRC:
The number of coils included on the item.APCN
Coil Quantity:
15
MRC:
An indication of the coil helix direction.AXLH
Coil Helix Direction:
Right-hand
MRC:
The weight,per specific measurement scale,required to deflect the spring.AXLP
Spring Deflection Rate:
56.000 pounds per inch
Spring Free Outside Diameter:
Between 0.929 inches and 0.960 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Cylindrical
