Teilenummer 3431

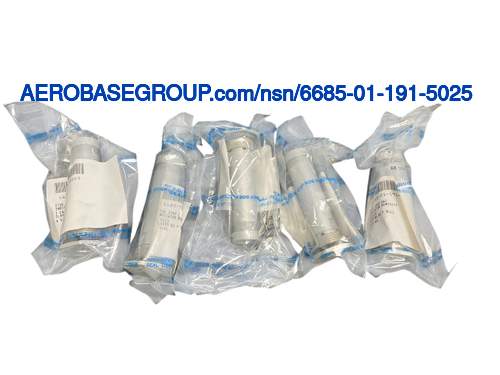

Plug Humidity Indicator

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 96.46 and 130.221 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
3431
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
011915025

Informationen zum Teil
W/porous desiccant

NSN
Nationale Bestandsnummer:
6685-01-191-5025 6685011915025
TXT
Beschreibung:
Plug Humidity Indicator
INC
INC
Artikelname-Code:
08357
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Left-hand single end
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
4.000 inches
MRC:
A measurement of the longest straight line across a circular cross-sectional plane.ADAV
Overall Diameter:
1.375 inches
MRC:
Indicates the type of end connection.AWZY
End Connection Type:
Flanged, recessed single end
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
14 single end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.750 inches single end
MRC:
The relative humidity percentage level(s) at which a desiccant spot,or a series of desiccant spots,on an item will change color.CTGW
Desiccant Spot Humidity Percentage:
20.0 and 30.0 and 40.0
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 2017 or aluminum alloy 2024
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-i-26860 type 2 military specification 1st material response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Plug
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Npt single end
