Teilenummer 35217-4X6

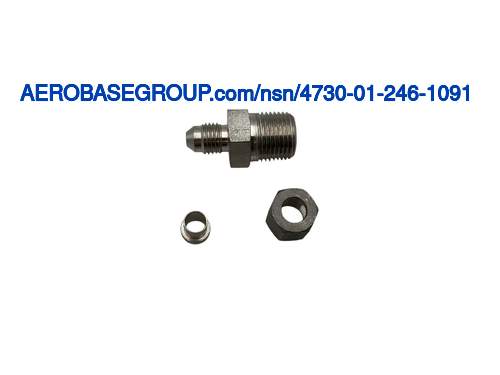

Pipe To Tube Straight Adapter
Lagerverfügbarkeit  Produkt-Bedingungscodes

Teilenummer 35217-4x6 ist in den folgenden Mengen und Zuständen vorrätig.

  • NS: 24
  • NE: 1

Hinweis: Die Verfügbarkeit dieses Artikels wurde zuletzt aktualisiert 02/27/2023 und kann sich seitdem verändert haben. Fordern Sie ein Angebot an, um aktuelle Preise und Verfügbarkeiten zu erhalten.

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 31.1 and 41.985 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
35217-4x6
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
012461091
NSN
Nationale Bestandsnummer:
4730-01-246-1091 4730012461091
TXT
Beschreibung:
Pipe To Tube Straight Adapter
INC
INC
Artikelname-Code:
03776
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2a 1st end
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
400.0 degrees fahrenheit single response
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
92f support equipment, f-16 aircraft
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flared (tube) 1st end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Plain (pipe) 2nd end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external pipe 2nd end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube 1st end
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
9600.0 pounds per square inch single response
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.375 inches 2nd end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.437 inches 1st end
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
37.0 degrees 1st end
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.250 inches 1st end
MRC:
The nominal dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.CWFR
Nominallength:
1.410 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 316
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Nptf 2nd end
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf 1st end
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.TMQY
Furnished Items And Quantity:
1 tube coupling nut w/sleeve
