Beschreibung:

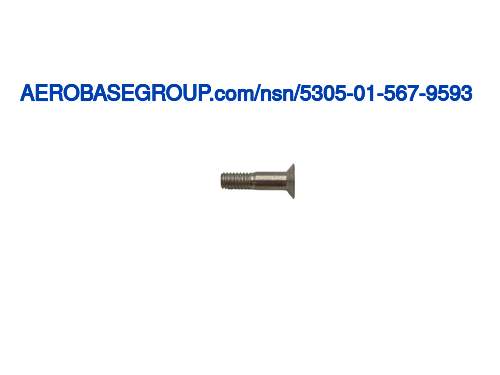

Socket Head Cap Screw
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
7.5 millimeters
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 15.2 millimeters and 15.8 millimeters
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat countersunk
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 7.2 millimeters and 8.0 millimeters
MRC:
The length of a straight line which passes through the center of the largest cross section of a spline,and terminates at the circumference.AAUJ
Spline Major Diameter:
3.9 millimeters
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
Torx
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
End item nsn: 1340-01-517-4757; mlrs multiple launch rocket system
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
4.0 millimeters
MRC:
A measurement of distance between corresponding points on two adjacent threads measured parallel to the thread axis,expressed in millimeters.CQQR
Thread Pitch In Millimeters:
0.7
MRC:
A numeric-alpha designator indicating established pitch and crest diameter tolerance positions and grades of an external thread.CQWR
External Thread Tolerance Class:
4h6h
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 99.5 degrees and 100.5 degrees
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Mj
