Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
532-38105-202
Entmilitarisierung:
Yes - DEMIL/MLI
Informationen zum Teil

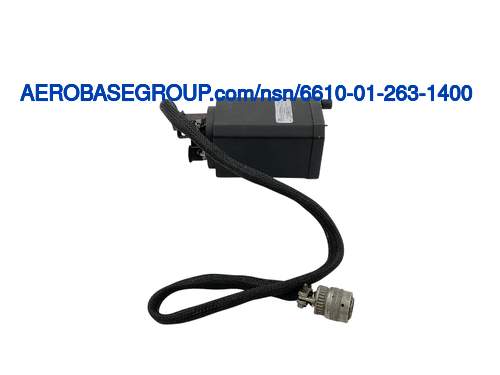

Max allowable airspeed indicator
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:
Air Speed Indicator
MRC:
A measurement taken at right angles to the length of an item,in distinction from thickness.ABGL
Width:
Between 3.160 inches and 3.190 inches
MRC:
A measurement of the longest dimension of any object,in distinction from width.ABRY
Length:
6.620 inches
MRC:
Indicates the type of current whether alternating,direct,or both.ACDC
Current Type:
Dc
MRC:
The value,or range of values,of root mean square potential for which the item is rated.ACYN
Ac Voltage Rating:
5.0 volts and 15.0 volts
MRC:
The value,or range of values,of direct current potential for which the item is rated.ACYR
Dc Voltage Rating:
28.0 volts
MRC:
A linear measurement from the surface to a specified inner point on an item,in distinction from height.AEJZ
Depth:
5.500 inches
MRC:
The number of contacts which provide electrical connection.AFRA
Contact Quantity:
18
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Aircraft model c-130
MRC:
Indicates the designed use of the item.ALBY
Usage Design:
Air speed
MRC:
Indicates the type of presentation.AMNL
Presentation Type:
Dial and digital display
MRC:
An indication of the individual marking on the item.ASKN
Individual Marking:
Knots
MRC:
The number of electrical connections provided.ASKX
Electrical Connection Quantity:
1
MRC:
The identifying number assigned by the government agency or commercial organization controlling the electrical connection.ASKZ
Electrical Connection Identifying Number:
Ms3122e14-185
MRC:
The number of command signs provided.ASLB
Err Default:
Err default
MRC:
An indication of whether or not the command sign/s/ is replaceable.ASLC
Err Default:
Err default
MRC:
The number of mechanical connections provided.ASSB
Mechanical Connection Quantity:
2
MRC:
Designates the thread size,diameter,or the like,of the mechanical connection.ASSC
Mechanical Connection Size:
An816-46 or 7/16-20unf 3a
MRC:
Indicates the type of mechanical connection/s/ provided.ASSD
Mechanical Connection Type:
Flared tube fitting
MRC:
The number of knobs provided.ASSK
Knob Quantity:
1
MRC:
The function for which the pointer is intended.ASSR
Pointer Purpose:
1st pointer-air speed, 2nd pointer- maximum allowable speed, digital indicator air speed
MRC:
Indicates the type of pointer provided.ASST
Pointer Type:
Indicating all pointers
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
1 panel
MRC:
The number of digits displayed.BFQP
Display Digit Quantity:
3
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Us navy item-lighting ckt 5v, blue/white lighting, 4 bulb, airspeed pointer color white, maximum airspeed pointer color white and dayglo rocket red, command bug color dayglo yellow, includes push to test button, off flag, case is black, non dod used nsn 6610-01-297-7004 has a gray case
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
Between 3.160 inches and 3.190 inches
