Nationale Bestandsnummer:
TXT
Beschreibung:

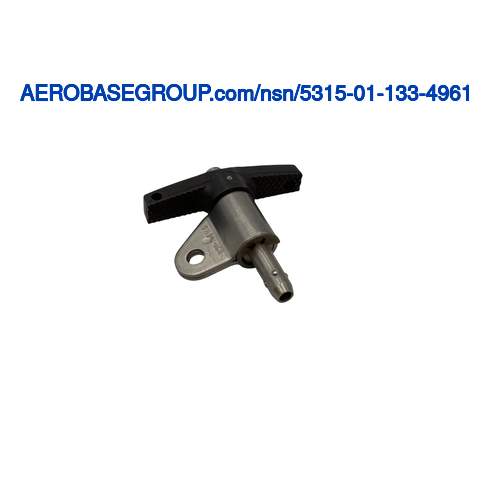

Quick Release Pin
MRC:
A measurement of the longest dimension of the handle,in distinction from width.AASN
Handle Length:
Between 1.800 inches and 2.200 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.2470 inches and 0.2485 inches
MRC:
The number of detents included in the item.ABRM
Detent Quantity:
2
MRC:
The means by which the item is actuated.AFLW
Actuation Method:
Push button
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.390 inches and 0.410 inches
MRC:
Indicates the type of actuation provided.APCM
Actuation Type:
Push
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
9200 double pounds per square inch
Shoulder To Head End Distance:
1.402 inches
MRC:
Indicates the type of device that is attached to the pin.CTDJ
Pin Attachment Type:
Link and ring
Detent To Tapered End Distance:
Between 0.260 inches and 0.290 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 440c spindle
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp xm-13 shank
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5629 cond h1000 assn standard single material response shank
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-s-763 federal specification single material response spindle
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate shank
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate spindle
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response shank
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response spindle
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
T handle
