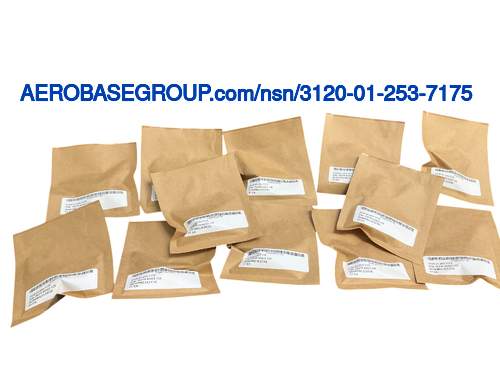

Teilenummer 70219-42422-125

Sleeve Bushing
Beschreibung

Bushing

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 9.8 and 13.23 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
70219-42422-125
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
012537175
NSN
Nationale Bestandsnummer:
3120-01-253-7175 3120012537175
TXT
Beschreibung:
Sleeve Bushing
INC
INC
Artikelname-Code:
13206
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
1.1250 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 0.7505 inches and 0.7515 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.3760 inches and 0.3765 inches
MRC:
The length of a straight line which passes through the center of the flange,and terminates at the outside circumference.AEPR
Flange Outside Diameter:
Between 0.6750 inches and 0.6900 inches
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
Between 0.0600 inches and 0.0650 inches
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered outside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square inside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square inside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square left flange outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Undercut left flange body corner
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
63.0 microinches right end surface of body
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2 federal specification single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
22c solid, external flange one end
