Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
70219-42422-126
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

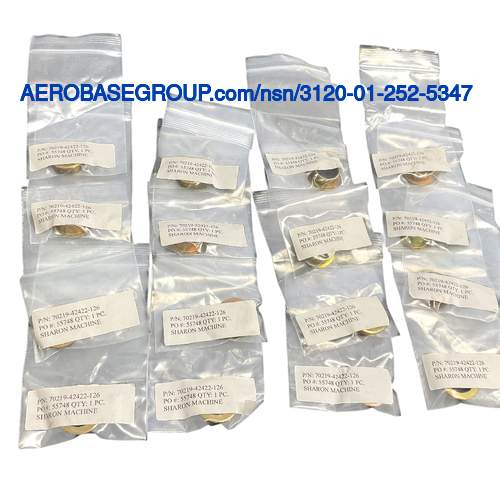

Sleeve Bushing
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
0.8757 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.7525 inches and 0.7535 inches
MRC:
The length of a straight line which passes through the center of the flange,and terminates at the outside circumference.AEPR
Flange Outside Diameter:
1.1250 inches
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
Between 0.0450 inches and 0.0600 inches
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square inside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square inside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside right corner
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
125.0 microinches inside diameter surface of body
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
125.0 microinches left end surface of body and flange
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
125.0 microinches outside diameter surface of flange
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
125.0 microinches right end surface of body
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
125.0 microinches right end surface of left flange
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
63.0 microinches outside diameter surface of body
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
22c solid, external flange one end
