Nationale Bestandsnummer:
TXT
Beschreibung:

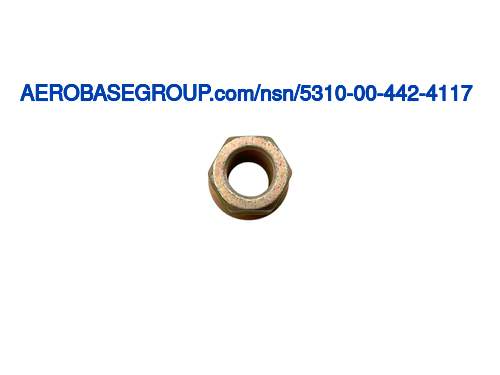

Hexago Extended Washer Plain Nut
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
Washer Outside Diameter:
0.680 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
Between 0.552 inches and 0.572 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
Washer Thickness:
0.250 inches
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.553 inches and 0.564 inches
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unjf
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
24
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
Between 28.0 rockwell c and 32.0 rockwell c
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.375 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-s-763 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416 federal specification single treatment response
