Beschreibung:

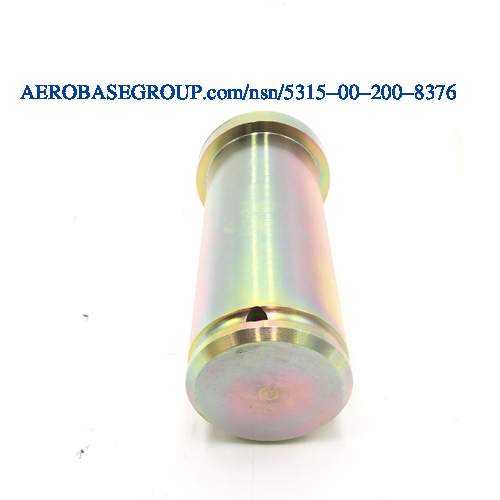

Headed Grooved Pin
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the first end.AAGZ
First End Style:
Chamfered
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat chamfer
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the circumference.ABMZ
Diameter:
Between 2.235 inches and 2.250 inches
MRC:
A measurement of the longest effective dimension of an item.ABNZ
Effective Length:
Between 4.844 inches and 4.906 inches
Undercut Diameter:
Between 2.000 inches and 2.062 inches
Under Head Length:
Between 5.375 inches and 5.437 inches
Undercut Radius:
Between 0.094 inches and 0.156 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the holes.ABRB
Hole Arrangement Style:
One end drilled
First Hole Diameter:
Between 0.281 inches and 0.291 inches
First End Taper Length:
0.125 inches
First End Taper Angle:
45.0 degrees
Pin Head Diameter:
Between 2.688 inches and 2.812 inches
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
Between 0.469 inches and 0.531 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4137h or steel comp 4140h or steel comp 6150 or steel comp 8740
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm a331, cage 81346 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Zinc and chromate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-z-325 type 2 cl 3 federal specification all treatment responses
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Groove
