Nationale Bestandsnummer:
TXT
Beschreibung:

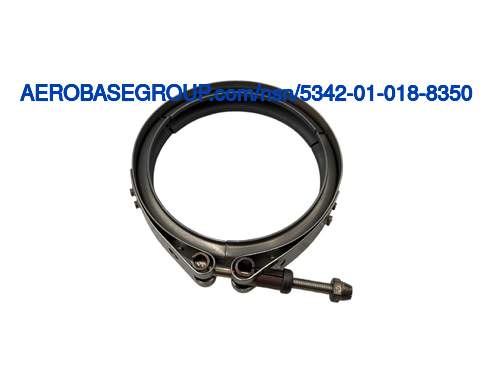

Grooved Clamp Coupling
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Grooved retainer
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 4.064 inches and 4.084 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.ABJH
Tempurature Rating:
Not rated
MRC:
A measurement of the smallest dimension of the retainer,in distinction from length or width.ADTJ
Retainer Thickness:
0.050 inches
MRC:
The maximum load for which the item is rated.AGCS
Maximum Load Rating:
Not rated
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the latch.AGPR
Latch Style:
Single
MRC:
The measurement of the included angle,expressed in degrees.AKZZ
Included Angle In Deg:
42.0
MRC:
Indicates the type of nut used in conjunction with the item.ALDS
Nut Type:
Self-locking hexagon
MRC:
The number of segments included in the item.ALDT
Segment Quantity:
3
MRC:
An indication of whether or not a sealing inner liner is included.ALDW
Sealing Inner Liner:
Not included
Retainer Width:
Between 0.730 inches and 0.770 inches
Root Width:
Between 0.202 inches and 0.232 inches
MRC:
A measurement of the smallest dimension of the band,in distinction from length or width.ALED
Band Thickness:
0.032 inches
MRC:
A measurement taken at right angles to the length of the band,in distinction from thickness.ALEE
Band Width:
Between 0.730 inches and 0.770 inches
MRC:
The element,compound,or mixture of which the item is fabricated,excluding any surface treatment,and its location.ANNQ
Material And Location:
Steel, ams 5735, type a286, t-bolt err-100 err-100
MRC:
The element,compound,or mixture of which the item is fabricated,excluding any surface treatment,and its location.ANNQ
Material And Location:
Steel nut err-100 err-100
MRC:
The element,compound,or mixture of which the item is fabricated,excluding any surface treatment,and its location.ANNQ
Material And Location:
Steel, ams 5526 retainer err-100 err-100
MRC:
The element,compound,or mixture of which the item is fabricated,excluding any surface treatment,and its location.ANNQ
Material And Location:
Steel, ams 5627 strap err-100 err-100
MRC:
A measurement from the bottom to the top of an object,in distinction from depth.HGTH
Height:
Between 0.271 inches and 0.291 inches
MRC:
The physical configuration of the item.SHPE
Shape:
Round
