Teilenummer 92798-12-27

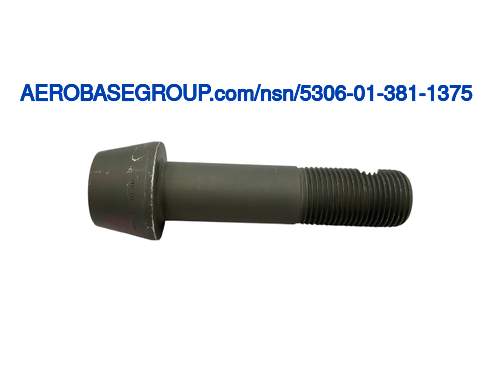

Internal Wrenching Bolt
Lagerverfügbarkeit  Produkt-Bedingungscodes

Teilenummer 92798-12-27 ist in den folgenden Mengen und Zuständen vorrätig.

  • NE: 4

Hinweis: Die Verfügbarkeit dieses Artikels wurde zuletzt aktualisiert 08/09/2024 und kann sich seitdem verändert haben. Fordern Sie ein Angebot an, um aktuelle Preise und Verfügbarkeiten zu erhalten.

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 316.32 and 427.032 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
92798-12-27
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
013811375

Informationen zum Teil
0.249/0.252 in.Hole dia: drilled hole 0.090 in. Deep to accomodate locking pellet. 0.500 in. Center of hole from end of thds.

NSN
Nationale Bestandsnummer:
5306-01-381-1375 5306013811375
TXT
Beschreibung:
Internal Wrenching Bolt
INC
INC
Artikelname-Code:
06666
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
1.048 inches
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 3.047 inches and 3.077 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Bevel-conical
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 1.220 inches and 1.230 inches
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.750 inches
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Pellet threads
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
Hexagon
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
0.750 inches
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.5630 inches and 0.5660 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
16
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Nickel alloy 718 fastener
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polychlorotrifluoroethylene locking feature
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 3650 assn standard single material response locking feature
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5662 assn standard single material response fastener
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium fastener and chromate fastener
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, cl1, ty2 federal specification single treatment response fastener
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf
