Beschreibung:

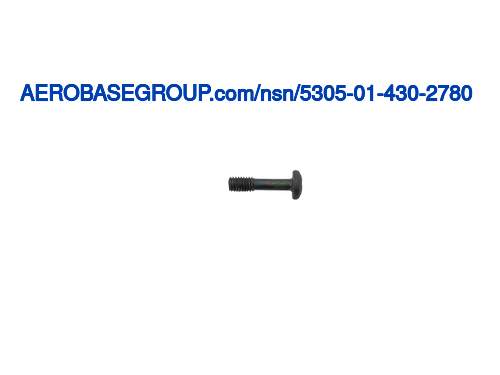

Externally Relieved Body Screw
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
5.0 millimeters
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
12.0 millimeters
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Pan no. 2
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 5.5 millimeters and 5.8 millimeters
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
Between 1.52 millimeters and 1.98 millimeters
First Diameter From Head:
2.23 millimeters
Distance From Largest Bearing Surface Of Head To End Of First Diameter:
7.0 millimeters
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
Cross recess type 1
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
3.0 millimeters
MRC:
A measurement of distance between corresponding points on two adjacent threads measured parallel to the thread axis,expressed in millimeters.CQQR
Thread Pitch In Millimeters:
0.5
MRC:
A numeric-alpha designator indicating established pitch and crest diameter tolerance positions and grades of an external thread.CQWR
External Thread Tolerance Class:
6g
MRC:
The number of externally relieved diameters on the body,adjacent to the head.CSNG
Externally Relieved Body Diameter Quantity:
1
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
M
