Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Entmilitarisierung:
Yes - DEMIL/MLI
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

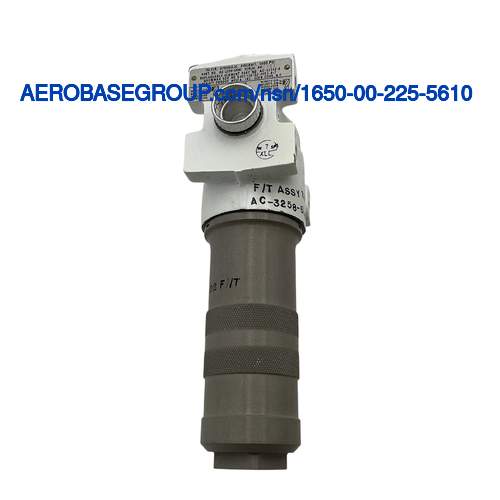

Fluid Filter
MRC:
Indicates the type of mount utilized to support the item.AAXX
Mounting Type:
Strap head
MRC:
A measurement of the longest dimension of the body,in distinction from width.ADAQ
Body Length:
6.765 inches
MRC:
A measurement taken at right angles to the length of the body,in distinction from thickness.ADAT
Body Width:
2.750 inches
MRC:
A measurement from the bottom to the top of the body,in distinction from depth.ADAU
Body Height:
1.832 inches
MRC:
The size of the smallest particle which the element is capable of removing from the fluid which passes through the filtering material.ADNH
Filtration Rating In Microns:
15.0
MRC:
Indicates the design type of the item.APGF
Design Type:
Reusable
MRC:
The number of filtering elements provided.CCZM
Filtering Element Quantity:
1
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
3000.0 pounds per square inch
MRC:
An indication of the structure or characteristic of the filtering media.CRXW
Filtering Media Design:
Corrugated single filtering media response
MRC:
Indicates the type of connection on the first intake.CRXZ
First Intake Connection Type:
Threaded internal tube side
MRC:
Indicates the first discharge connection relationship to an intake connection.CSJR
First Discharge Connection Relationship To Intake Connection:
Identical to first intake connection
MRC:
A designation distinguishing one group of thread diameter-pitch combination from another by the number of threads per measurement scale for a specific diameter.CTDY
First Intake Thread Series Designator:
Unf
MRC:
A designation that is used for the purpose of general identification of the thread.CTGK
First Intake Thread Size:
0.562 inches
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.CWNZ
First Intake Thread Class:
3b
MRC:
The direction of the thread when viewed axially.a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.CXPF
First Intake Thread Direction:
Right-hand
MRC:
The filtering system for which the item is designed to be used.CXZX
Filtering System For Which Designed:
By-pass flow
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy sediment bowl
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel filtering medium
MRC:
The justification for the assignment of a federal supply class /fsc/ to an item based on the classification of the next higher classifiable assembly.ZZZV
Fsc Application Data:
Hydraulic system, aircraft
