Teilenummer AS18957-500

Gasket

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 23.56 and 31.806 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
as18957-500
Entmilitarisierung:
Lagerfähigkeit:
N/A
Maßeinheit:
0 EA
NIIN:
016254012

Informationen zum Teil

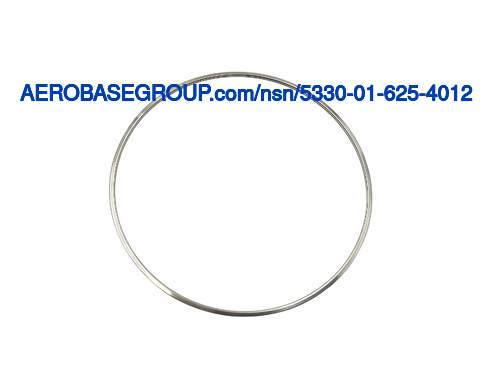

Gasket

NSN
Nationale Bestandsnummer:
5330-01-625-4012 5330016254012
TXT
Beschreibung:
Gasket
INC
INC
Artikelname-Code:
04522
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
5.249 inches
MRC:
The length of a straight line which passes through the center of an aperture,and terminates at the circumference.ABVL
Aperture Diameter:
4.958 inches
MRC:
A measurement of the smallest dimension of a cross section,in distinction from length or width.ADVM
Cross-sectional Thickness:
Between 0.103 inches and 0.113 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
F-35
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Nickel alloy
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams5589 assn standard 1st material response or ams5596 assn standard 2nd material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 type i, ii, iii assn standard single treatment response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Circular
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
81343-as1895/7c professional/industrial association standard
