Teilenummer AS5194

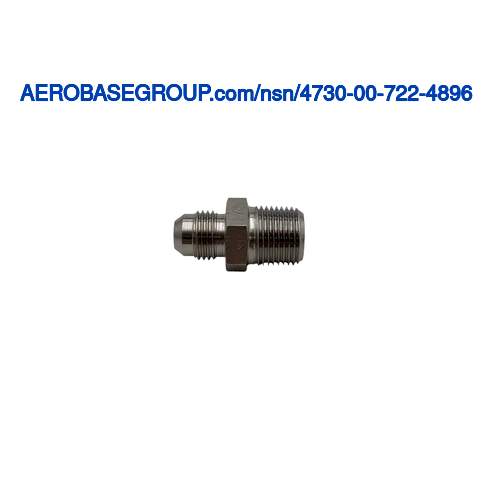

Pipe To Boss Straight Adapter

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 9.42 and 12.717 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
as5194
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
007224896

Informationen zum Teil
Fleet ballistic missile quality as identified by quality control no.Poso913448

NSN
Nationale Bestandsnummer:
4730-00-722-4896 4730007224896
TXT
Beschreibung:
Pipe To Boss Straight Adapter
INC
INC
Artikelname-Code:
22674
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a 2nd end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flared w/ gasket seal (boss) 2nd end
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Plain (pipe) 1st end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external boss 2nd end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external pipe 1st end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.375 inches 1st end
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.562 inches 2nd end
MRC:
The nominal dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.CWFR
Nominallength:
1.406 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 304
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
66 federal standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Anpt 1st end
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf 2nd end
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
88044-an816 government standard and 81343-as4842/1 professional/industrial association standard
