Teilenummer:
b15sw-2.50in
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

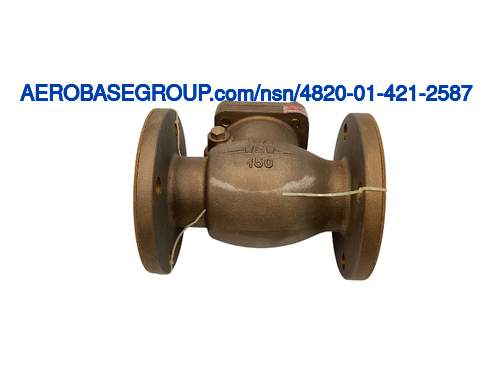

Check Valve
MRC:
The part that controls the flow through the item.ADQU
Flow Control Device:
Disk
MRC:
The number of bolt holes provided on the item.AECS
Bolt Hole Quantity:
4 all ends
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
150.0 degrees fahrenheit 2nd response
MRC:
The maximum temperature at which the item is rated to operate for an extended period of time.AEHZ
Maximum Operating Temp:
406.0 degrees fahrenheit 1st response
MRC:
The means used to control the operation of the valve.AQLR
Valve Operation Method:
Automatic
MRC:
The physical configuration of the flange.ARKN
Flange Shape:
Round with holes all ends
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Flange all ends
MRC:
The installed position for which the item is designed.BBJX
Mounting Position:
Horizontal or vertical
MRC:
Designates the size of the valve.CCFG
Valve Size:
2.500 inches
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
150.0 pounds per square inch 1st response
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
225.0 pounds per square inch 2nd response
MRC:
The nominal length of a straight line which passes through the center of an item,and terminates at the outside circumference.CWCD
Outside Diameter:
7.000 inches all ends
MRC:
The face to face distance.CWCF
Face To Face Distance:
8.500 inches
MRC:
A nominal measurement of the smallest dimension of an item,in distinction from length or width.CWCK
Thickness:
0.563 inches all ends
MRC:
The nominal length of a straight line which passes through the center of the bolt hole,and terminates at the circumference.CWCQ
Bolt Hole Diameter:
0.875 inches all ends
MRC:
The nominal length of a straight line which passes through the center of the bolt circle,and terminates at the circumference.CWCT
Bolt Circle Diameter:
5.500 inches all ends
MRC:
The design of the flange face.CWDF
Flange Face Design:
Plain all ends
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 836 body
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 836 flow control device
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 836 seat
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm b62 assn standard single material response body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm b62 assn standard single material response flow control device
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Astm b62 assn standard single material response seat
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Steam 1st response
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Water-oil-gas 2nd response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Straight through flanged ends
