Informationen zum Teil

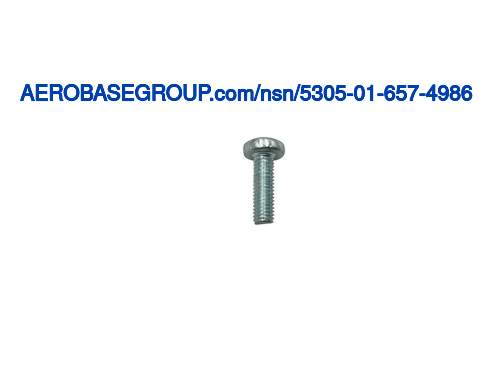

Phillips pan head machine screws
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:
Machine Screw
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
M5
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
16.0 millimeters
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
16.0 millimeters
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Pan no. 2
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
9.50 millimeters
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
3.70 millimeters
MRC:
The length of a straight line which passes through the center of the shank unthreaded hole,and terminates at the inside circumference.AAWB
Shank Unthreaded Hole Diameter:
16.0 millimeters threads
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
Cross recess type ii
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
5840-01-603-2838
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
5.7 millimeters
MRC:
Indicates the type of document by the title.AJJZ
Document Type:
International organization for standardization
MRC:
Indicates the type of hole(s) provided in the item.BQDM
Hole Type:
Threaded
MRC:
A measurement of distance between corresponding points on two adjacent threads measured parallel to the thread axis,expressed in millimeters.CQQR
Thread Pitch In Millimeters:
16.0
MRC:
A numeric-alpha designator indicating established pitch and crest diameter tolerance positions and grades of an external thread.CQWR
External Thread Tolerance Class:
M5
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the screw material.CYAW
Screw Material Specification:
Din7985a national specification single material response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Iso m
