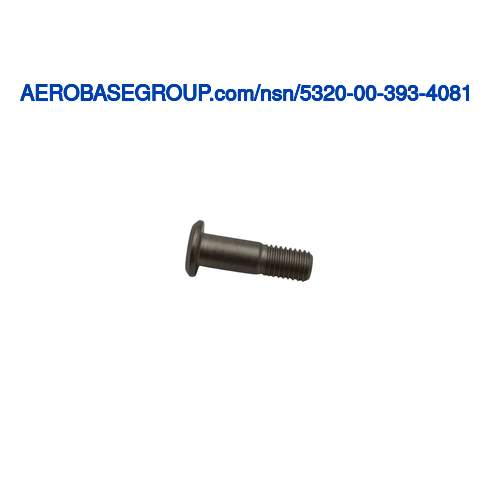

Teilenummer HL48-8-7

Pin-rivet
Lagerverfügbarkeit  Produkt-Bedingungscodes

Teilenummer hl48-8-7 ist in den folgenden Mengen und Zuständen vorrätig.

  • NS: 94
  • NE: 804

Hinweis: Die Verfügbarkeit dieses Artikels wurde zuletzt aktualisiert 11/20/2024 und kann sich seitdem verändert haben. Fordern Sie ein Angebot an, um aktuelle Preise und Verfügbarkeiten zu erhalten.

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 13.8 and 18.63 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
hl48-8-7
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
25 EA
NIIN:
003934081
NSN
Nationale Bestandsnummer:
5320-00-393-4081 5320003934081
TXT
Beschreibung:
Pin-rivet
INC
INC
Artikelname-Code:
67165
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.823 inches and 0.843 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Err-090
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
Between 0.077 inches and 0.090 inches
MRC:
None.AATB
Width Between Flats:
Between 0.095 inches and 0.097 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.2490 inches and 0.2495 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Pin-rivet, straight, threaded
MRC:
None.AAZG
Head Major Diameter:
Between 0.415 inches and 0.440 inches
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Cetyl alcohol
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
W/s: aircraft, eagle f-15
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
0.443 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
28
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.250 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5731 assn standard single material response or ams 5737 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
258, fscm 73197 mfr ref single treatment response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf
