Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

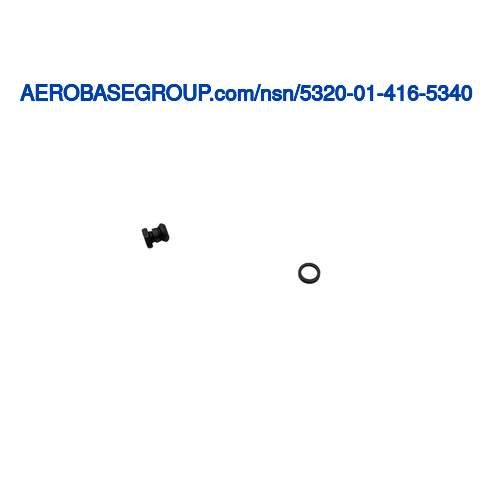

Pin-rivet Collar
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
Collar Outside Diameter:
Between 0.355 inches and 0.365 inches
Collarheight:
Between 0.427 inches and 0.457 inches
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Solid film
Collar Inside Diameter:
0.255 inches
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Washer
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.164 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the collar.CWBJ
Collar Style:
Threaded (break off) type
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 303 body
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 631 washer or steel comp 630 washer or steel comp 632 washer
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams5640 assn standard single material response collar or astm a582 assn standard single material response collar
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams5643 assn standard single material response washer or ams5528 assn standard single material response washer or ams5520 assn standard single material response washer
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjc
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
73197-hl75 manufacturers standard
