Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
hs5532h0444c
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

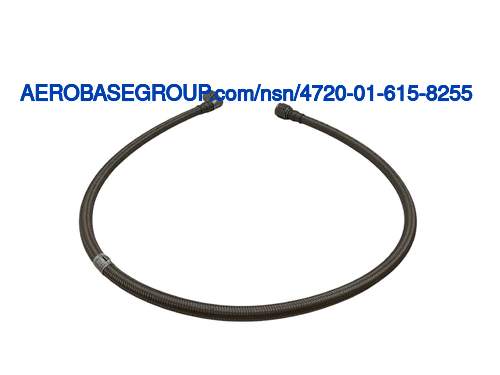

Nonmetallic Hose Assembly
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Round
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
0.585 inches
MRC:
The minimum inside bending radius formed without stressing or deformation of a flexible item.ACKH
Minimum Inside Bending Radius:
4.62 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
7-610000000-1
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Swivel, plain all ends
MRC:
The physical configuration of the outside of the end connection.AKUU
End Connection Design:
Elbow 2nd end
MRC:
The physical configuration of the outside of the end connection.AKUU
End Connection Design:
Straight 1st end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded internal hose all ends
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
16 all ends
MRC:
The minimum internal pressure rating,determined by destruction tests,at which the item can be expected to rupture.CQBD
Burst Test Pressure:
3000.0 pounds per square inch
MRC:
The material and formation identifying the structural characteristic/s/ of the item and location.CQCS
Layer Composition And Location:
Outer layer braided corrosion resistant steel wire
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.750 inches all ends
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
90.0 degrees 2nd end
MRC:
The means used and the measurement of the longest dimension of an item.CRXX
Measuring Method And Length:
44.5 inches
