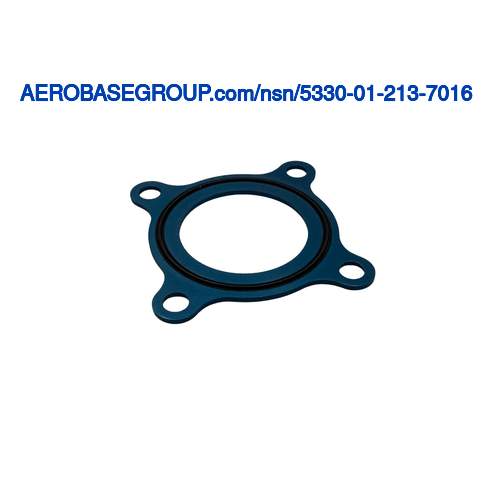

Teilenummer J219P08

Gasket

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 24.2 and 32.67 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
j219p08
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
012137016

Informationen zum Teil
Aluminum surfaces anodized per mil-a-8625, type 2, color blue

NSN
Nationale Bestandsnummer:
5330-01-213-7016 5330012137016
TXT
Beschreibung:
Gasket
INC
INC
Artikelname-Code:
04522
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Metal and synthetic rubber
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.318 inches and 0.338 inches
MRC:
The length of a straight line which passes through the center of a bolt circle,and terminates at the circumference.ABKG
Bolt Circle Diameter:
Between 3.345 inches and 3.373 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 3.949 inches and 4.017 inches
MRC:
The length of a straight line which passes through the center of an aperture,and terminates at the circumference.ABVL
Aperture Diameter:
Between 1.831 inches and 1.851 inches
MRC:
None.ADPW
Outside Corner Radius:
Between 0.302 inches and 0.322 inches
MRC:
None.ADVC
Side Radius From Gasket Center:
Between 1.370 inches and 1.380 inches
MRC:
A measurement of the smallest dimension of a cross section,in distinction from length or width.ADVM
Cross-sectional Thickness:
Between 0.106 inches and 0.140 inches
MRC:
None.ADWF
Gage Ring Thickness:
Between 0.070 inches and 0.090 inches
MRC:
The number of bolt holes provided on the item.AECS
Bolt Hole Quantity:
4
MRC:
The percentage the item will stretch.ANYN
Elongation Percentage:
125
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 6061 and rubber fluorocarbon class fpm
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 4027 assn standard 1st material response and mil-r-83248, type 1, cl 1 military specification 2nd material response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Non-circular
