Beschreibung:

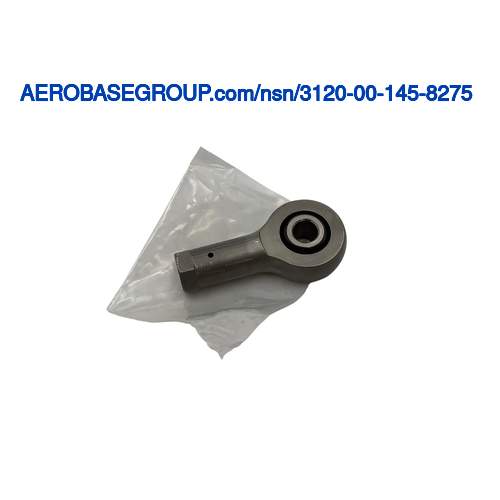

Rod End Plain Bearing
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Internally threaded w/ hexagon end
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 2.1850 inches and 2.2150 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 0.3120 inches and 0.3125 inches
Outer Member Outside Diameter:
1.0800 inches
Bore Center To Shank End Distance:
Between 1.6450 inches and 1.6750 inches
Outer Member Width:
Between 0.3990 inches and 0.4190 inches
Inner Member Width:
Between 0.4950 inches and 0.5000 inches
Shank Thread Length:
0.8100 inches
MRC:
The shortest straight line between wrenching flats,perpendicular to the height of the shank.AGHB
Shank Width Across Wrench Flats:
0.5000 inches
MRC:
The length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AWDP
Thread Diameter:
0.375 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
24
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic fluorocarbon race liner
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy inner member and ceramic inner member
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Stainless steel rod end body
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Kacarbite, 84955 mfr ref single material response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Ball type
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unf
