Teilenummer:
m17191-00001
Informationen zum Teil
Flexible; dc resistance 0.66 ohms per 100 feet; impedance 75 ohms
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

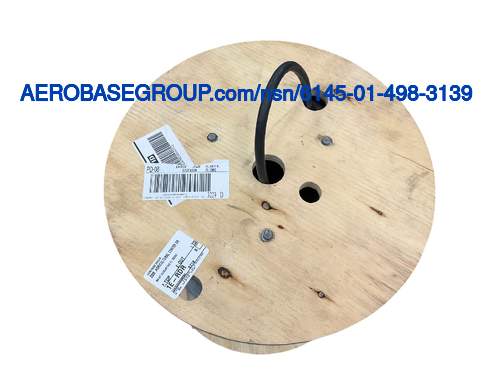

Radio Frequency Cable
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Round
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
M3p upgrd kit; weapon system-radar threat emiter an/mst-t1; operating temperature minus 30 degrees c to 85 degrees c
MRC:
The number of electrical conductors included on the item.AMQN
Conductor Quantity:
1
MRC:
The property of a system of conductors and dielectrics which permits the storage of electricity when potential difference exists between the conductors,expressed in picofarads.AXGH
Capacitance In Picofarads:
22.0 per foot
MRC:
The number of strands per conductor.BLNZ
Strand Quantity Per Conductor:
7 all conductors
MRC:
The fabricated form of the conductor.CXCW
Conductor Form:
Stranded single conductor
MRC:
The arrangement and number of arrangements of the conductors.CXDQ
Conductor Arrangement And Quantity:
1 coaxial
MRC:
The maximum sustained voltage that can be safely applied to the item without risking failure or damage.CXFK
Voltage Rating:
3700.0 root mean square (rms) operating voltage single conductor
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper 2nd position shield braid, metallic cable
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper 3rd position shield braid, metallic cable
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper core conductor single conductor
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic cross-linked polyolefin 5th position jacket cable
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyester 4th position tape cable and aluminum 4th position tape cable
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic polyethylene 1st position primary insulation single conductor
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Tin alloy core conductor single conductor
