Teilenummer M24142-1-001

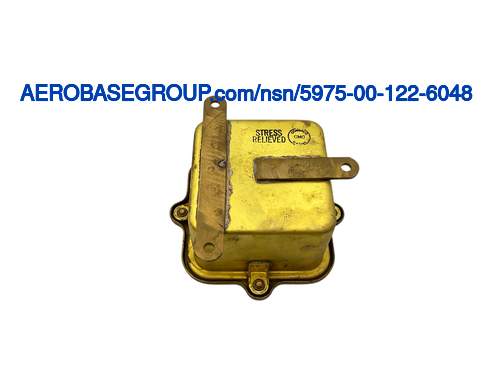

Junction Box

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 162.56 and 219.456 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
m24142-1-001
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
001226048
NSN
Nationale Bestandsnummer:
5975-00-122-6048 5975001226048
TXT
Beschreibung:
Junction Box
INC
INC
Artikelname-Code:
06219
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
6.125 inches
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
3.066 inches
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
6.125 inches
MRC:
None.ABUQ
First Center To Center Distance Between Mounting Holes:
3.875 inches
MRC:
None.ABUR
Second Center To Center Distance Between Mounting Holes:
5.000 inches
MRC:
An inside measurement taken at right angles to the length of an item,in distinction from thickness.ADJT
Inside Width:
4.000 inches
MRC:
A measurement of the longest inside dimension of an item,in distinction from width.ADJU
Inside Length:
4.000 inches
MRC:
The environmental elements or conditions that an item is designed or protected to resist or withstand satisfactorily.ADZC
Environmental Protection:
Shock proof and submersible
MRC:
The number of holes provided to attach the cover.AELW
Cover Mounting Hole Quantity:
4
MRC:
An inside measurement between specified points of an item,in distinction from height.AFEF
Inside Depth:
2.812 inches
MRC:
None.AFEK
Mounting Feet Thickness:
0.125 inches
MRC:
Indicates the type of cover as distinguished by its particular design.AFER
Cover Type:
Blank
MRC:
The means provided for attaching the cover.AFFG
Cover Attachment Method:
Bolts
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Err-090
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
-24142/1-001 part
