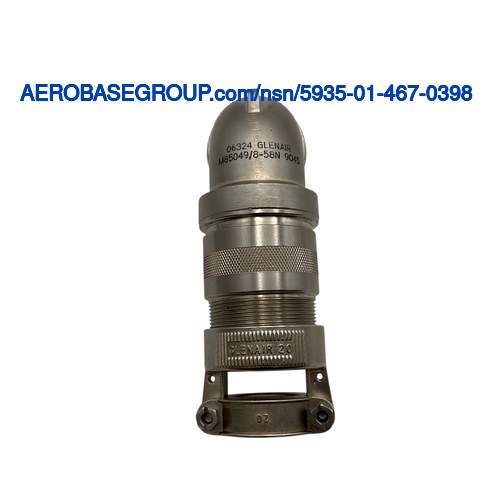

Teilenummer M850498-58N

Electrical Connector Backshell

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 184.66 and 249.291 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
m850498-58n
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
014670398

Informationen zum Teil
A tab is formed on the outside corner of the 90 degree elbow with a hole for a .020 diameter safety wire to be attached

NSN
Nationale Bestandsnummer:
5935-01-467-0398 5935014670398
TXT
Beschreibung:
Electrical Connector Backshell
INC
INC
Artikelname-Code:
67169
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
2a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 2.073 inches and 2.113 inches
MRC:
The angle the end/s/ or legs deviate from the centerline of the inlet end,expressed in degrees.ADMW
Body Angle In Deg:
90.0
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
An/spn-46v3, nimitz class cvn
MRC:
The length of a straight line which passes through the center of the cable opening,and terminates at the circumference.AGTW
Cable Opening Diameter:
Between 0.875 inches and 1.250 inches
MRC:
None.AKEZ
Distance From Centerline To Connector End:
Between 2.281 inches and 2.531 inches
MRC:
None.AKFA
Distance From Centerline To Cable End:
Between 4.718 inches and 4.842 inches
MRC:
The number of openings designed to accommodate a cable.AKRD
Cable Opening Quantity:
1
MRC:
Indicates the type of seal included with the item.AKRF
Seal Type:
Preformed packing and grommet
MRC:
Indicates the type and number of facilities by which the item is mounted.AXHR
Mounting Facility Type And Quantity:
1 threaded coupling
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
18
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
1.750 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Angle type w/clamp
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Uns
