Teilenummer MBBN3013L3206

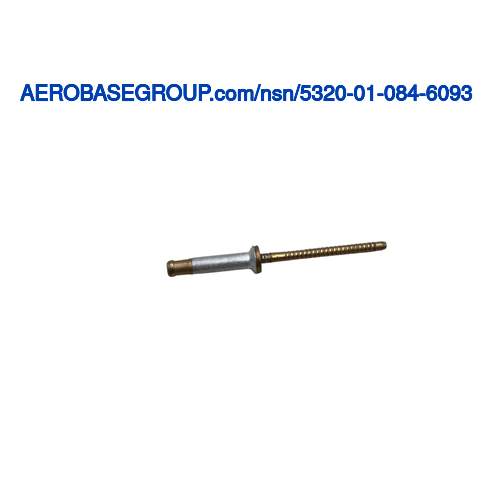

Blind Rivet
Beschreibung

Cherry rivet

Lagerverfügbarkeit  Produkt-Bedingungscodes

Teilenummer mbbn3013l3206 ist in den folgenden Mengen und Zuständen vorrätig.

  • NE: 15793
  • NS: 283

Hinweis: Die Verfügbarkeit dieses Artikels wurde zuletzt aktualisiert 03/27/2024 und kann sich seitdem verändert haben. Fordern Sie ein Angebot an, um aktuelle Preise und Verfügbarkeiten zu erhalten.

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 0.88 and 1.188 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
mbbn3013l3206
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
100 EA
NIIN:
010846093

Informationen zum Teil
Ns" letters after the material code "b" indicate no preference to lock type (may be visible or internal). Rivets with no letter code (indicating visible lock type) and rivets with the letter "h" after the material code (indicating internal lock type) are both acceptable for this item of supply.

NSN
Nationale Bestandsnummer:
5320-01-084-6093 5320010846093
TXT
Beschreibung:
Blind Rivet
INC
INC
Artikelname-Code:
00864
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.439 inches and 0.459 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.125 inches and 0.129 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Self-plugging mechanically locked stem
MRC:
None.AAZG
Head Major Diameter:
0.229 inches
MRC:
The device by which the item is expanded and set.ABAF
Expansion Device:
Serrated stem-type w
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.313 inches and 0.375 inches
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 99.0 degrees and 101.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Aluminum alloy 5056 sleeve
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 8740 stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 6322 assn standard single material response stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-a-430 federal specification single material response sleeve
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Chromate sleeve
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium stem and chromate stem
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Mil-c-5541 military specification single treatment response sleeve
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, class 2 federal specification all treatment responses stem
