Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Entmilitarisierung:
Yes - DEMIL/MLI
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

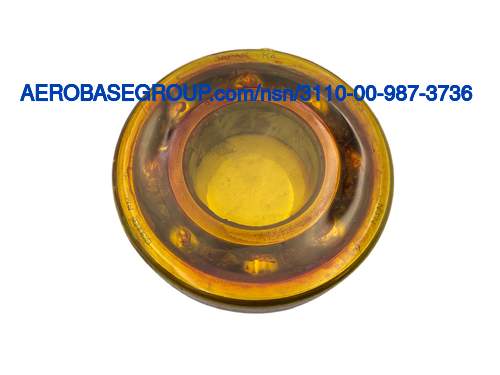

Annular Ball Bearing
MRC:
An overall measurement taken at right angles to the length of an item,in distinction from thickness.ABMK
Overall Width:
Between 1.2972 inches and 1.2992 inches
MRC:
The length of a straight line which passes through the center of a circular bore,and terminates at the circumference.ABXV
Bore Diameter:
Between 2.5589 inches and 2.5591 inches
MRC:
The overall length of a straight line which passes through the center of an item,and terminates at the outside circumference.ADGA
Overall Outside Diameter:
Between 5.5116 inches and 5.5118 inches
MRC:
The element,compound,or mixture with which the item is lubricated.ADZG
Lubrication Material:
Grease
MRC:
An additional finishing process by which the surface of an item is altered in respect to polishing,grinding,and the like.AGYE
Surface Finish:
Ground
MRC:
The means used in manufacturing the retainer.AGYF
Retainer Fabrication Method:
Pressed
MRC:
The number of shields included on the item.AGYK
Shield Quantity:
1
MRC:
The direction of load with respect to the shaft axis.AGZC
Load Direction:
Radial
MRC:
The physical configuration of the bore.AGZD
Bore Shape:
Straight
MRC:
The designation specifying the type of fit as recognized by industrial and governmental agencies.AGZH
Internal Fit-up Designation:
Tight
MRC:
The clearance between the bearing rings and the rolling elements.AKVV
Internal Clearance:
0.0007 inches radial and 0.0011 inches radial
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Zzzw
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the lubrication material.LMDC
Lubrication Material Specification:
Mil-g-18709 military specification single material response
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Non-loading groove, non-separable
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
111 type and 2 class
MRC:
The technical differentiating characteristic/s/ of an item of supply which depart/s/ from the text of a specification or a standard in that it represents a selection of characteristics stated in the specification or standard as being optional,or a variation from one or more of the stated characteristics,or an additional characteristic not stated in the specification or standard.ZZZW
Departure From Cited Document:
Quiet operation tested for submarine use
