Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
mil-g-18997e
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

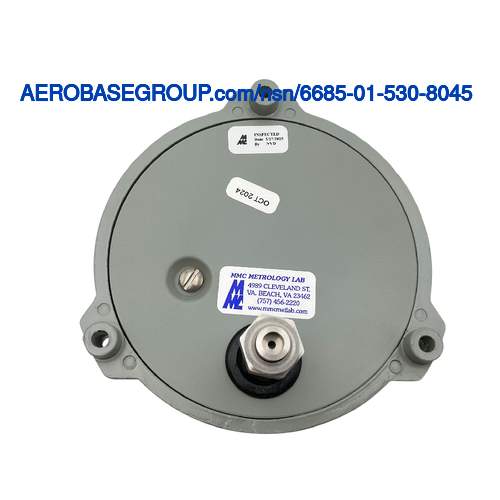

Dial Indicating Pressure Gage
MRC:
The element,compound,or mixture of which the case is fabricated,excluding any surface treatment.ADTV
Case Material:
Aluminum
MRC:
Consists of plating,dip,and/or coating that cannot be wiped off. plating and/or coating is any chemical and/or metallic additive,electrochemical,or mild mechanical process which protects the surface of the case.ADTY
Case Surface Treatment:
Enamel, gray
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
Misc parts auxiliary systems ddg 0064
MRC:
The increment of measure represented by the marking/s/ on the item.ANBJ
Graduation Unit:
0.3 pounds per square inch
MRC:
Indicates the type of actuation provided.APCM
Actuation Type:
Bourdon tube
MRC:
An indication of whether or not the item is adjustable.APCS
Adjustability:
Adjustable
MRC:
An indication of the scale range.APSK
Scale Range:
+0.0/+15.0 pounds per square inch
MRC:
The nomenclature by which the scale is identified.AQFZ
Scale Name:
Pounds pressure
MRC:
Designates the size of the relative or proportionate dimensions of the dial.ARCH
Dial Size:
4.5 inch
MRC:
The number of connections furnished.ASMM
Connection Quantity:
1
MRC:
The hue or tint of the pointer.ASSS
Pointer Color:
Red
MRC:
Indicates the type of pointer provided.ASST
Pointer Type:
Indicating
MRC:
Indicates the type of scale.ATEQ
Scale Type:
Dial
MRC:
The smallest value between the markings on a scale.AWAG
Scale Smallest Increment:
0.5 pounds per square inch
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
External
MRC:
The means of attaching the item.AXGY
Mounting Method:
Flush panel or surface
MRC:
The element,compound,or mixture of which an actuating element is fabricated,excluding any surface treatment.BGKY
Actuating Element Material:
Nickel alloy
MRC:
The hue or tint of the inscription(s) and/or that portion of the scale which surrounds the inscription on the scale.BGKZ
Scale Inscription/background Color:
Black numerals and graduations, white background
MRC:
Indicates the connection location.BGRY
Connection Location:
Back
MRC:
Indicates the type of bezel provided.BHMD
Bezel Type:
Snap-on
MRC:
Designates the size of the connection provided.BHMG
Connection Size:
9/16-in. 18 thread unf
MRC:
An indication of whether or not a connector type vent is provided.BHMK
Connector Type Vent:
Not provided
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
Mil-g-18997e reference number
