Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
mil-h-24135-12
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

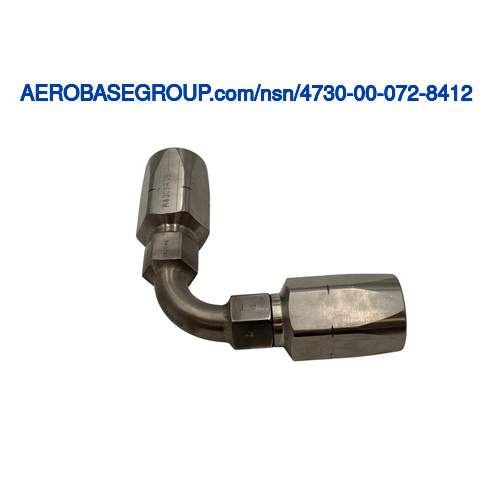

Hose Elbow
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Gripping nipple (nose) 1st end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
4.520 inches 1st end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external hose 1st end
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
90.0 degrees
MRC:
The nominal length of a straight line which passes through the center of the accommodated hose,and terminates at the inside circumference.CWDW
Inside Diameter Hose Accommodated:
0.750 inches 1st end
MRC:
The nominal length of a straight line which passes through the center of the accommodated hose,and terminates at the outside circumference.CWDZ
Outside Diameter Hose Accommodated:
1.250 inches 1st end
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Nickel alloy body
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1213 socket
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Fed standard 66, aisi c1113 or sae 1113 federal standard 2nd material response socket
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-n-281, class a or b federal standard 1st material response body
MRC:
The name and number of those parts furnished with the item of supply that have not been specified elsewhere.TMQY
Furnished Items And Quantity:
2 socket
