Informationen zum Teil

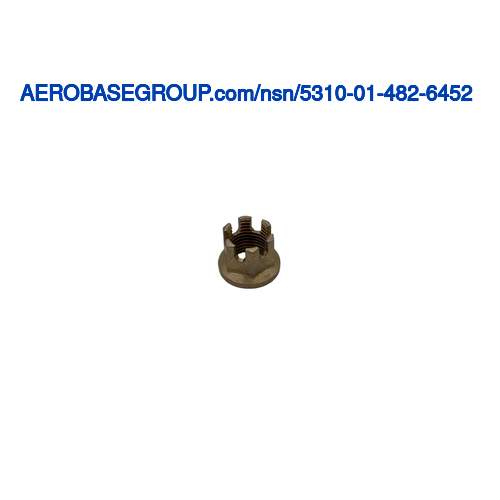

Nut, self-locking, lightweight, castellaed, 450 degree f
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:
Extended Washer Self-locking Nut
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque with metallic insert
Washer Outside Diameter:
Between 0.725 inches and 0.770 inches
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Soluble lubricant
MRC:
The distance measured in a straight line from the bottom to the top of an item.ABKW
Overall Height:
Between 0.548 inches and 0.578 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Castellated hexagon
Washer Thickness:
0.070 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
V-22 aircraft
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 0.554 inches and 0.566 inches
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
450.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unjf
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
20
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.500 inches
MRC:
The master requirement codes of those requirements which are technically critical by reason of tolerance,fit,performance,or other characteristics which affect identification of the item.CRTL
Criticality Code Justification:
Agav
MRC:
Those unusual or unique characteristics or qualities of an item not covered in the other requirements and which are determined to be essential for identification.FEAT
Special Features:
Reference cotterpin size - 3/32 inches (0.09375); navy - nut, self-locking, aircraft
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 1035 or steel comp 1042 or steel comp 1050 or steel comp 1137 or steel comp 11l37 or steel comp 4027 or steel comp 4037 or steel comp 8740
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5080 assn standard 1st material response or qq-s-700 federal specification 2nd material response or ams 5085 assn standard 3rd material response or ams 5024 assn standard 4th material response or ams 5020 assn standard 5th material response or astm a322 uns g40270 assn standard 6th material response or astm a322, uns g40370 assn standard 7th material response or astm 331, uns g40370 assn standard 7th material response or astm a519, uns g40370 assn standard 7th material response or astm a547, uns g40370 assn standard 7th material response or ams 6322, uns g87400 assn standard 8th material response or ams 6323, uns g87400 assn standard 8th material response or ams 6325, uns g87400 assn standard 8th material response or ams 6327, uns87400 assn standard 8th material response or ams6358, uns g87400 assn standard 8th material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-463 federal specification single treatment response
