Nationale Bestandsnummer:
TXT
Beschreibung:

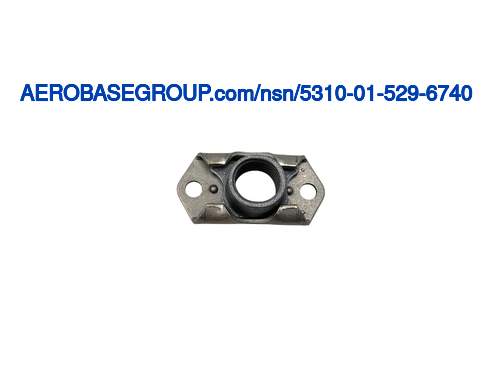

Plate Self-locking Nut
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
An element inserted into the fastener,or a design feature,that enables the fastener to effectively resist vibration and rotation.AAUM
Locking Feature:
Prevailing torque all metal design
MRC:
The length of a straight line which passes through the center of a counterbored portion of a hole,and terminates at the circumference.AAWY
Counterbore Diameter:
0.497 inches first end and 0.517 inches first end
MRC:
A substance designed to provide a reduction of friction between the two surfaces in contact.ABAJ
Lubrication:
Dry film lubricant
MRC:
The length of a straight line which passes through the center of a mounting hole,and terminates at the circumference.ABTB
Mounting Hole Diameter:
Between 0.161 inches and 0.166 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Plate
MRC:
A measurement of the longest dimension of the nut,in distinction from width.ACVN
Nut Length:
1.477 inches
MRC:
A measurement of the smallest dimension of a plate,in distinction from length or width.ADEB
Plate Thickness:
0.115 inches
MRC:
A measurement taken at right angles to the length of a plate,in distinction from thickness.ADEC
Plate Width:
Between 0.672 inches and 0.719 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the arrangement of the mounting hole(s).ADFU
Mounting Hole Arrangement Style:
2 holes
Distance From Aperture Center To Mounting Hole Center:
Between 0.557 inches and 0.567 inches
MRC:
A measurement of the center to center distance between the mounting holes along the length.ADFY
Center To Center Distance Between Mounting Holes Along Length:
Between 1.123 inches and 1.127 inches
MRC:
The national stock number or the identification information of the end equipment for which the item is a part.AGAV
End Application:
F-22 aircraft
MRC:
A value which expresses the degree of heat or cold as applied to the operation,or limitation of operation,of an item.AZKQ
Tempurature Rating:
450.0 degrees fahrenheit
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unjf
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
20
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
49.0 rockwell c
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.437 inches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5525 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
