Teilenummer:
ms21250h08020
Informationen zum Teil

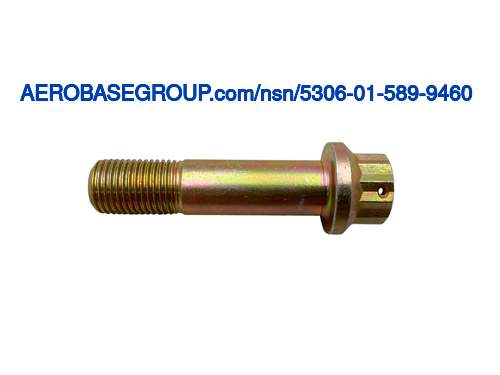

Bolt, tension, steet, external wrenching, flanged, 12 point, 180 ki ftu, 450 degrees f
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:
Shear Bolt
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
0.768 inches
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
2.038 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Double hexagon w/hole
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
0.504 inches
Width Between Flats:
0.563 inches
Extended Washer Diameter:
0.828 inches
Extended Washer Thickness:
0.123 inches
MRC:
The length of a straight line which passes through the center of a hole,and terminates at the circumference.AAUB
Hole Diameter:
Between 0.050 inches and 0.060 inches
MRC:
The length of a straight line which passes through the center of the grip,and terminates at the circumference.AAUR
Grip Diameter:
Between 0.499 inches and 0.500 inches
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
0.500 inches
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 1.240 inches and 1.260 inches
MRC:
The number of holes provided.ASXK
Hole Quantity:
4
MRC:
Indicates the type of hole(s) provided in the item.BQDM
Hole Type:
Drilled
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
20
MRC:
The maximum rated load in tension applied in a longitudinal direction,per unit of cross-sectional area,that the material can withstand without rupture.CQBC
Min. Tensile Strength (psi):
30900 pounds per square inch
MRC:
The style designation that most nearly corresponds to the appearance of the hole configuration.CRHC
Hole Configuration Style:
Hexagon longitudinal hole
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4140 or steel comp 4340 or steel comp 8740 or steel comp e4340 or steel comp 6150
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5382 assn standard single material response or ams 6415 assn standard single material response or ams 6322 assn standard single material response or ams-s-5000 or ams 6484 assn standard single material response or ams 6448 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Ams-qq-p-416, type ii, class 2 assn standard single treatment response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf
