Teilenummer:

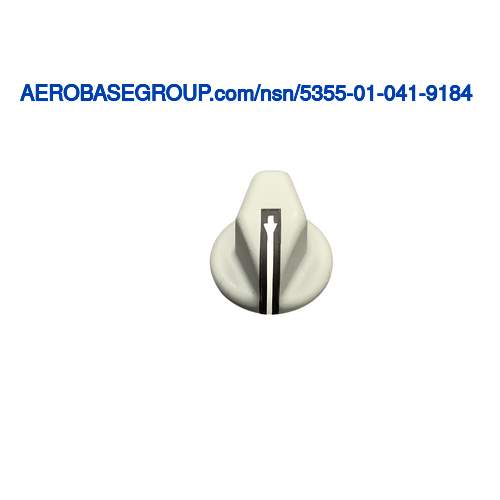

ms21384-02ann
NSN
Nationale Bestandsnummer:
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the inside circumference.AARX
Inside Diameter:
Between 0.126 inches and 0.128 inches
MRC:
The number of setscrew holes included on the item.ABFR
Setscrew Hole Quantity:
2
MRC:
The distance from the center of the hole to the base of the knob or base of skirt if with integrally molded skirt.ABFU
Distance From Hole Center To Knob/skirt Base:
0.310 inches
MRC:
An overall measurement between specified points of an item,in distinction from height.ABFY
Overall Depth:
0.500 inches
MRC:
The texture of that portion of the item which is designed to be grasped.ABHG
Gripping Surface Condition:
Smooth
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shaft accommodation.ABHH
Shaft Accommodation Style:
Flatted one side
MRC:
The length of a straight line which passes through the center of a circular figure or body,and terminates at the outside circumference.ABKV
Outside Diameter:
1.000 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the skirt.ABSL
Skirt Style:
Flared
MRC:
A visible tracing or impression,and the like,of alpha and/or numeric characters,symbols,and the like.ABSP
Reference Marking:
Index line
MRC:
The means used to attach the item.ABSX
Attachment Method:
Setscrews
MRC:
An inside measurement taken at right angles to the length of an item,in distinction from thickness.ADJT
Inside Width:
Between 0.106 inches and 0.108 inches
MRC:
An overall measurement of the smallest dimension of an item,in distinction from length or width.ADUM
Overall Thickness:
0.620 inches
MRC:
Indicates the type of drive provided for turning,rotating,or positioning the screw.CBSC
Screw Drive Type:
Hexagon socket
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
40 screw hole
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.112 inches screw hole
Skirt Outside Diameter:
1.000 inches
MRC:
Indicates whether or not the skirt is designed as an integral part of the item.CRWX
Skirt Design:
Nondetachable
MRC:
Indicates whether or not the pointer is designed as an integral part of the item.CSKT
Pointer Design:
Nondetachable
MRC:
A characteristic of light that can be specified in terms of luminance,dominant wavelength,and purity.HUES
Color:
Gray, federal standard 595, 36231
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
Round with single pointed bar face
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unc screw hole
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
96906-ms21384 government standard
