Nationale Bestandsnummer:
TXT
Beschreibung:

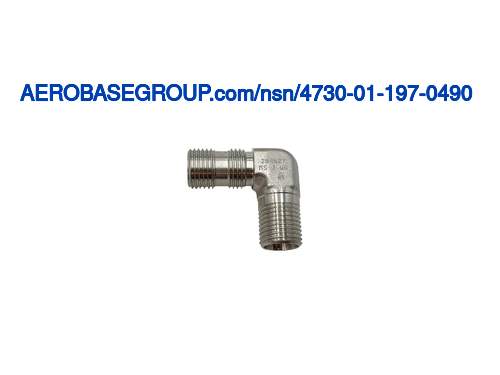

Tube Elbow
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a 1st end bulkhead
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a all ends
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the connection.AHNC
Connection Style:
Flareless (tube) all ends
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.060 inches 2nd end
MRC:
A measurement of the longest dimension of the leg,in distinction from width.AHSJ
Leg Length:
1.180 inches 1st end
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube 1st end bulkhead
MRC:
Indicates the type of connection/s/.AWLS
Connection Type:
Threaded external tube all ends
MRC:
The maximum pressure at which the item is rated for operation.CQGM
Maximum Operating Pressure:
3000.0 pounds per square inch single response
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.562 inches 1st end bulkhead
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.562 inches all ends
MRC:
The angle of the end surface upon which the mated surface seats.CQRB
Seat Angle:
12.0 degrees all ends
MRC:
The angle that the flow is turned from the straight flow.CRFY
Flow Angle:
90.0 degrees
MRC:
The nominal length of a straight line which passes through the center of the accommodated tube,and terminates at the outside circumference.CWFD
Outside Diameter Tube Accommodated:
0.375 inches all ends
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 304
MRC:
The type of media for which the item is designed.MEDA
Media For Which Designed:
Hydraulic fluid single response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf all ends
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf 1st end bulkhead
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
96906-ms21926 government standard
