Teilenummer MS25226-6T-2

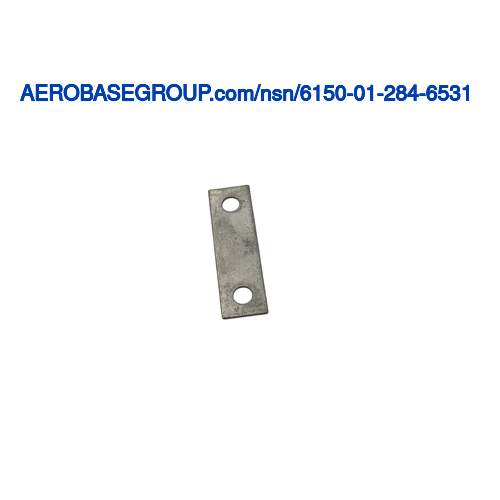

Conductor Bus

Preise und Verfügbarkeit

Reichen Sie dieses Formular ein, um die aktuellen Preise und die Verfügbarkeit dieser NSN zu erfahren.
Teilenummer:
Menge:
E-Mail-Adresse:
Telefon:
Referenz:
Firma:
Name:

Wir geben Ihre Daten nicht an Dritte weiter und verkaufen sie auch nicht.
Privatsphäre | Bedingungen

All major credit cards accepted as well as gov. p-cards

Historische Preise für dieses Produkt liegen zwischen 72.96 and 98.496 USD. Abhängig von Menge, Verfügbarkeit, Zustand, Lieferzeit und möglicher Einstellung eines Artikels können wir die Preise erst garantieren, wenn wir Ihnen ein aktuelles Angebot unterbreiten.

Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
ms25226-6t-2
Entmilitarisierung:
No
Lagerfähigkeit:
N/A
Maßeinheit:
1 EA
NIIN:
012846531
NSN
Nationale Bestandsnummer:
6150-01-284-6531 6150012846531
TXT
Beschreibung:
Conductor Bus
INC
INC
Artikelname-Code:
32758
MRC:
The physical configuration of the body when viewed in cross section.AAWN
Body Cross-sectional Shape:
Oblong
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
2.125 inches
MRC:
A measurement from the bottom to the top of a cross section,in distinction from depth.ADVN
Cross-sectional Height:
0.051 inches
MRC:
A measurement of the cross section taken at right angles to the length,in distinction from thickness.ADWH
Cross-sectional Width:
0.625 inches
MRC:
The pattern or arrangement that describes the mounting configuration of the item.ALGC
Mounting Configuration:
Two 0.257 in. Diameter holes 0.750 in. C to c
MRC:
The structural characteristic of the item.CQCF
Construction:
Solid
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-c-502 federal specification single material response or qq-c-576 federal specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Tin
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Mil-t-10727, type 1 military specification single treatment response
