Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

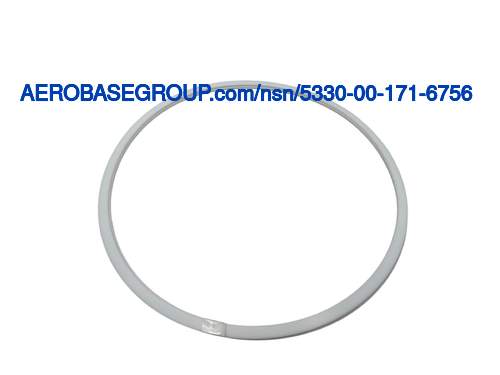

Packing Retainer
MRC:
The style designation indicating the configuration that most nearly corresponds to the cross-sectional shape of the item.AAGR
Cross Sectional Shape:
Square
MRC:
A measurement of the smallest dimension of a cross section,in distinction from length or width.ADVM
Cross-sectional Thickness:
Between 0.046 inches and 0.052 inches
MRC:
A measurement from the bottom to the top of a cross section,in distinction from depth.ADVN
Cross-sectional Height:
Between 0.138 inches and 0.156 inches
MRC:
The distance between the ends of the item.ADWB
Distance Between Ends:
Between 0.188 inches and 0.312 inches
MRC:
The length of a straight line which passes through the center of the center hole,and terminates at the circumference.ADYT
Center Hole Diameter:
6.750 inches
Peripheral Diameter:
Between 7.224 inches and 7.228 inches
MRC:
Indicates the type of joint/s/ on the item.AQNE
Joint Type:
Scarf-butt retainer
Angle:
Between 25.0 degrees and 35.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Plastic tetrafluoroethylene
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-r-8791 military specification single material response
