Teilenummer:
nas1198-5-12
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

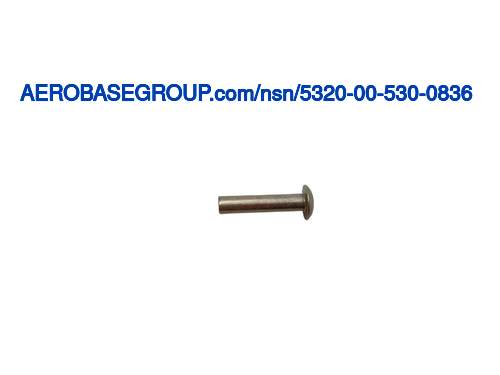

Solid Rivet
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 0.740 inches and 0.760 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Universal
MRC:
A measurement from the bottom to the top of the head,in distinction from depth.AASU
Head Height:
Between 0.067 inches and 0.077 inches
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.155 inches and 0.160 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Tapered hollow
Head Major Diameter:
Between 0.296 inches and 0.328 inches
Shank End Hole Diameter:
Between 0.075 inches and 0.085 inches
MRC:
A measurement between specified points of the hole,in distinction from height.AAZQ
Hole Depth:
Any acceptable
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
90000 single pounds per square inch
MRC:
A combination of timed heating and cooling operations applied for the purpose of annealing or hardening the item.HEAT
Heat Treatment:
Solution heat treated
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Iron alloy 660
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5737 assn standard single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification single treatment response
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-nas1198 professional/industrial association standard
