Teilenummer
Entmilitarisierung
Lagerfähigkeit
UOM
NIIN
Teilenummer:
nas1750-08dl4
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

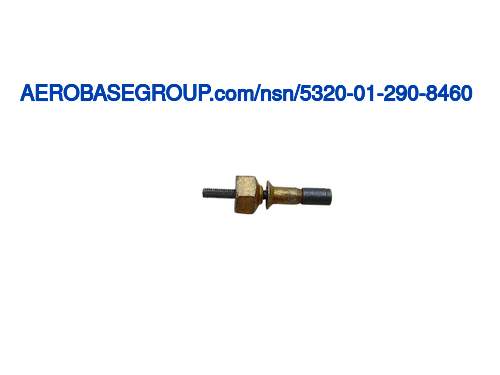

Blind Rivet
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.1780 inches and 0.1800 inches
Head Major Diameter:
0.296 inches
MRC:
Those features,not otherwise specified,which may be required for proper functioning of the item.CBBL
Features Provided:
Drive nut
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
39.0 rockwell c nut and 43.0 rockwell c nut
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 303se sleeve or steel comp 304 sleeve
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4130 nut or steel comp 4140 nut or steel comp 8740 nut
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Ams 5641 assn standard 1st material response sleeve or ams 5639 assn standard 2nd material response sleeve
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-s-6758 military specification 1st material response nut or mil-s-5626 military specification 2nd material response nut or mil-s-6049 military specification 3rd material response nut
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium bolt and chromate bolt
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium nut and chromate nut
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Passivate sleeve and cadmium sleeve
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-35 federal specification 1st treatment response sleeve and qq-p-416, type 1, cl 1 federal specification 2nd treatment response sleeve
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, cl 2 federal specification single treatment response nut
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-nas1750 professional/industrial association standard
