Nationale Bestandsnummer:
TXT
Beschreibung:

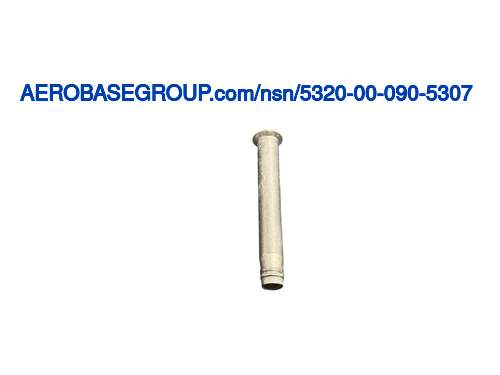

Pin-rivet
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
0.639 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flush countersunk
MRC:
The length of a straight line which passes through the center of the body of the shank and terminates at the circumference.AAZE
Shank Diameter:
Between 0.189 inches and 0.190 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the shank.AAZF
Shank Style:
Stump
Head Major Diameter:
Between 0.262 inches and 0.305 inches
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 0.313 inches and 0.375 inches
MRC:
The minimum load,applied perpendicularly to the longitudinal axis of an item,at which point the item will fracture when subjected to the standard shear test method.CQSX
Shear Strength:
95000 single pounds per square inch
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
Between 99.0 degrees and 101.0 degrees
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy uns r54520 or titanium alloy
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Nas 621 assn standard 1st material response or ams 4928 assn standard 2nd material response
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-nas2706 professional/industrial association standard
