Nationale Bestandsnummer:
TXT
Beschreibung:

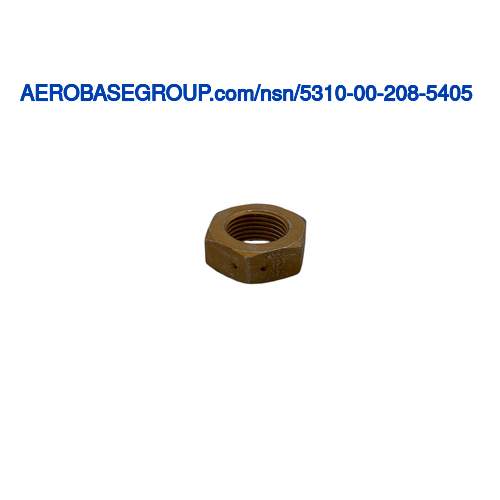

Hexagon Plain Nut
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3b
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the nut.ACTA
Nut Style:
Hexagon
MRC:
The length of a straight line which passes through the center of a drilled hole,and terminates at the circumference.AGGP
Drilled Hole Diameter:
Between 0.069 inches and 0.074 inches
MRC:
Indicates the type and number of holes provided.ALET
Hole Type And Quantity:
3 drilled
MRC:
The shortest straight line between flats,perpendicular to the height.ASDB
Width Across Flats:
Between 1.296 inches and 1.315 inches
MRC:
A designation indicating the diameter-pitch combination and the number of threads per measurement scale applied to a series of diameters.BZRR
Thread Series:
Unjf
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
14
MRC:
A numeric value that reflects the hardness of an item when used in conjunction with a hardness rating scale.CQFM
Hardness Rating:
Between 34.0 rockwell c and 38.0 rockwell c
MRC:
A designation that is used for the purpose of general identification of the thread.CQJX
Thread Size:
0.875 inches
MRC:
The style designation that most nearly corresponds to the appearance of the hole configuration.CRHC
Hole Configuration Style:
Configuration b
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
110.0 degrees nut
MRC:
Indicates the type of bearing surface.CRTM
Bearing Surface Type:
Chamfered
MRC:
Designates the specific roughness rating of the bearing surface,representing the arithmetic average deviation of the surface from the meanline in profile.CSXL
Bearing Surface Finish:
125.0 microinches
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Steel comp 4130
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Mil-s-6758, cond f4 military specification single material response
MRC:
The metallic,nonmetallic,and/or chemical properties with which the item is plated,dipped,and/or coated.the treatment is designed to protect the surface(s) and cannot be wiped off.SFTT
Surface Treatment:
Cadmium
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as type,class,grade,and the like,that identifies the surface treatment material.STDC
Surface Treatment Specification:
Qq-p-416, type 2, cl 2 federal specification single treatment response
MRC:
The number,letter,or symbol that indicates the type,style,grade,class,and the like,of an item in a nonidentifying specification or standard.ZZZT
Specification Or Standard:
2 type
