Beschreibung:

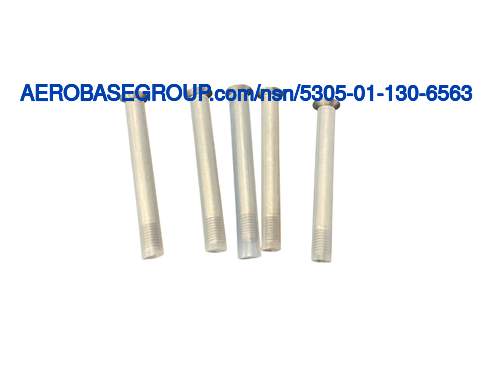

Close Tolerance Screw
MRC:
A numeric-alpha designator indicating the pitch diameter tolerance and an external or internal thread.AAJD
Thread Class:
3a
MRC:
The direction of the thread when viewed axially. a right-hand thread winds in a clockwise direction while a left-hand thread winds in a counterclockwise direction.AAJF
Thread Direction:
Right-hand
MRC:
A measurement of the extent of threads,including incomplete threads,along a line parallel to the longitudinal axis.AASA
Thread Length:
Between 0.314 inches and 0.364 inches
MRC:
The dimension,measured along a line parallel to the longitudinal axis,from the largest bearing surface of the fastener head to the extreme opposite end,or as specifically designated for other type fasteners.AASB
Fastener Length:
Between 1.949 inches and 1.979 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the head.AASK
Head Style:
Flat countersunk
MRC:
The length of a straight line which passes through the center of a circular head,and terminates at the circumference.AASL
Head Diameter:
Between 0.339 inches and 0.381 inches
MRC:
The length of a straight line which passes through the center of the grip,and terminates at the circumference.AAUR
Grip Diameter:
Between 0.1890 inches and 0.1895 inches
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the internal drive.ABQZ
Internal Drive Style:
High-torque
MRC:
The nominal length of a straight line which passes through the center of the threaded portion,and terminates at the circumference.AHYM
Thread Diameter:
0.190 inches
MRC:
A measurement of the longest dimension of the grip,in distinction from width.ANEE
Grip Length:
Between 1.615 inches and 1.635 inches
MRC:
The number of threads on the item per linear inch measured on a line parallel to the thread axis.CMLP
Thready Qty Per Inch (tpi):
32
MRC:
The maximum rated load in tension applied in a longitudinal direction,per unit of cross-sectional area,that the material can withstand without rupture.CQBC
Min. Tensile Strength (psi):
160000 pounds per square inch
MRC:
The included angle of the countersink.CRSQ
Countersink Angle:
100.0 degrees
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
32.0 microinches grip
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
32.0 microinches threads
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Titanium alloy
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Nas 621 assn standard single material response
MRC:
A designation distinguishing one group of thread diameter-pitch combinations from another by the number of threads per measurement scale for a specific diameter.THSD
Thread Series Designator:
Unjf
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-nas663 professional/industrial association standard
