Id and od to be parallel and concentric within 0.0030 tir
NSN
Nationale Bestandsnummer:
TXT
Beschreibung:

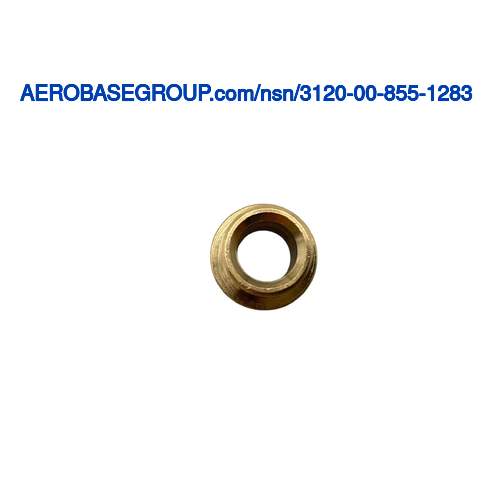

Sleeve Bushing
MRC:
The dimension measured along the longitudinal axis with terminated points at the extreme ends of the item.ABHP
Overall Length:
Between 0.3820 inches and 0.3970 inches
MRC:
The length of a straight line which passes through the center of the body,and terminates at the outside circumference.ADAR
Body Outside Diameter:
Between 0.3756 inches and 0.3761 inches
MRC:
The length of a straight line which passes through the center of a body,and terminates at the inside circumference.ADAS
Body Inside Diameter:
Between 0.2500 inches and 0.2515 inches
MRC:
The length of a straight line which passes through the center of the flange,and terminates at the outside circumference.AEPR
Flange Outside Diameter:
Between 0.4900 inches and 0.5100 inches
MRC:
A measurement taken at right angles to the length of a flange,in distinction from thickness.AGFF
Flange Width:
Between 0.0570 inches and 0.0620 inches
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered inside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Chamfered inside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square left flange outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside left corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Square outside right corner
MRC:
The physical configuration of the corner.BZLX
Corner Shape:
Undercut left flange body corner
MRC:
Designates the specific surface roughness rating,representing the arithmetic average deviation of the surface from the meanline in profile.CSYM
Surface Finish:
100.0 microinches intermediate layer
MRC:
The chemical compound or mechanical mixture properties of which the item is fabricated.MATT
Material:
Copper alloy 642
MRC:
The specification,standard,or manufacturers reference,and the classification designation,such as class,condition,temper,and the like,that identifies the material.MDCL
Material Specification:
Qq-c-465 federal specification single material response
MRC:
The style designation indicating the configuration that most nearly corresponds to the appearance of the item.STYL
Style Designator:
22c solid, external flange one end
MRC:
The document designator of the specification or standard which established the item of supply.ZZZK
Specification Data:
80205-nas77 professional/industrial association standard
